FIRE ASSAY

FUSION FURNACE

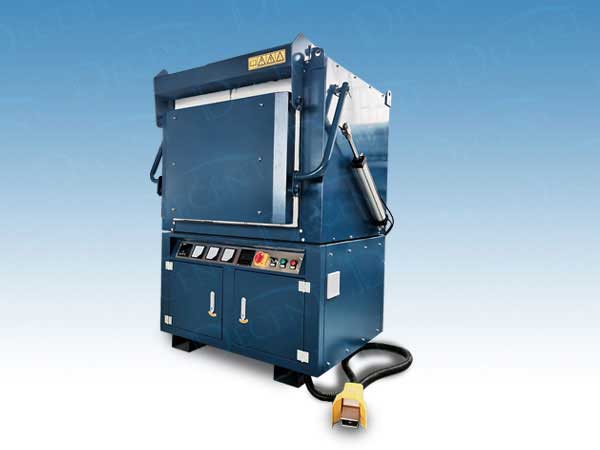

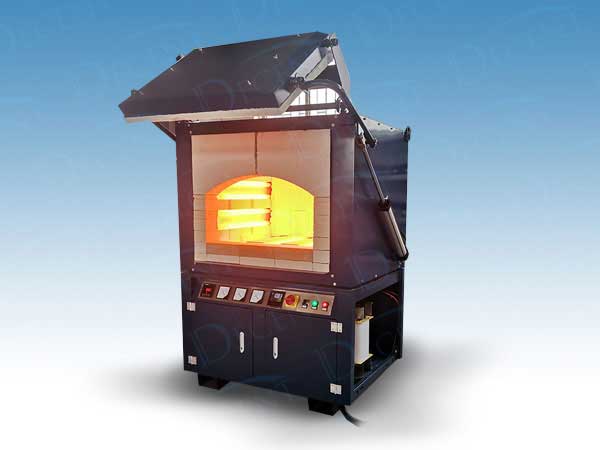

FUSION FURNACE

Easy to maintain and operate. Compatible with “Multi-pour” loading / unloading system. Door panel for easy access to transformer. Built to industry standards. Cabinet is durable 2mm steel plate, lined with high quality refractory bricks andinsulation. The furnace is mounted on a console fabricated from 2mm laser cut plate in blue enamel.

Product Details

Features
• Easy to maintain and operate.
• Compatible with multipour and multiload system.

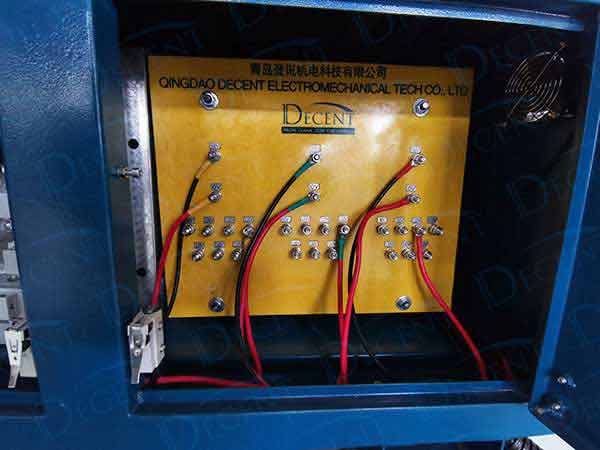

• Door panel for easy access to transformer.
• Built to industry standards.

Construction
• Cabinet is durable 2mm steel plate, lined with high quality refractory bricks and insulation.
• The furnace is mounted on a console fabricated from 2mm laser cut plate in blue enamel.

Door Operation

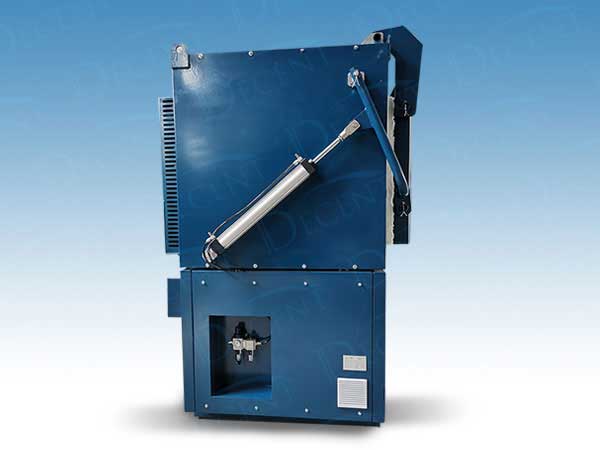

• Pneumatic rising. Operated by foot pedal.

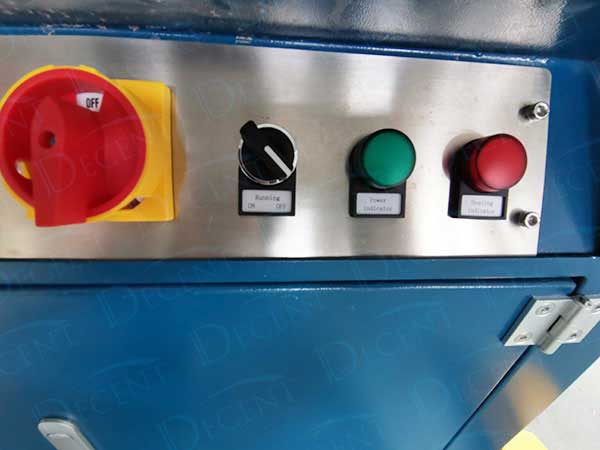

Temperature Control
• Electronic, automatic control max. 1150°C
• Type S thermocouple.
• High temperature alarm output.
• Optional 7 days timer is available.


Technical Parameters

Model No.

Muffle Size

Working Area

mm

Crucible Qty &Size

Heating Element

Transformer

Dimension

mm

DE-20FF

No. 6

560x480x190

20x50/65g

30x30/40/55g

12pcs, Silicon Carbide

3ph, 15va Multi-tap

1210x870x1760 w/ door closed

1210x870x1960 w/ door open

1310x970x1860 w/ packing

DE-25FF

No. 7

560x590x195

25x50/65g

42x30/40/55g

12pcs, Silicon Carbide

3ph, 24va Multi-tap

1420x1120x1930 w/ door closed

1420x1120x2100 w/ door open

1440x1140x2030 w/ packing
