FIRE ASSAY

CUPELLATION FURNACE

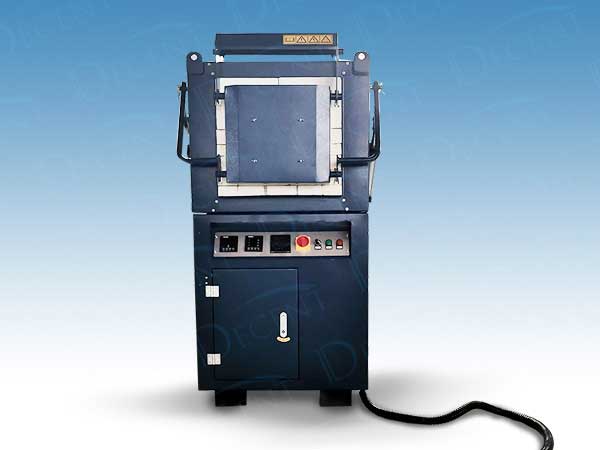

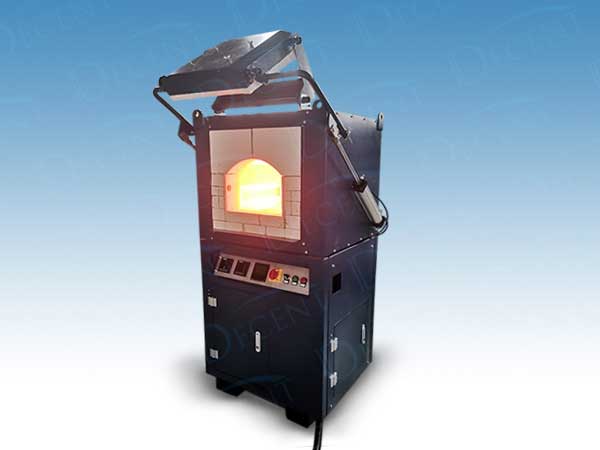

CUPELLATION FURNACE

Easy to maintain and operate. Door panel for easy access to transformer. Compatible with “Multi-pour” loading / unloading system. Built to industry standards.

Product Details

Features
• Easy to maintain and operate.
• Door panel for easy access to transformer.
• Compatible with “Multi-pour” loading / unloading system.
• Built to industry standards.

Construction
• Cabinet is durable 2mm steel plate, lined with high quality refractory bricks and insulation.
• The furnace is mounted on a console fabricated from 2mm laser cut plate in blue enamel.

Temperature Control
• Electronic, automatic control max. 1200°C,
• Type “K” thermocouple
• High temperature alarm output.
• Optional 7 days timer is available.

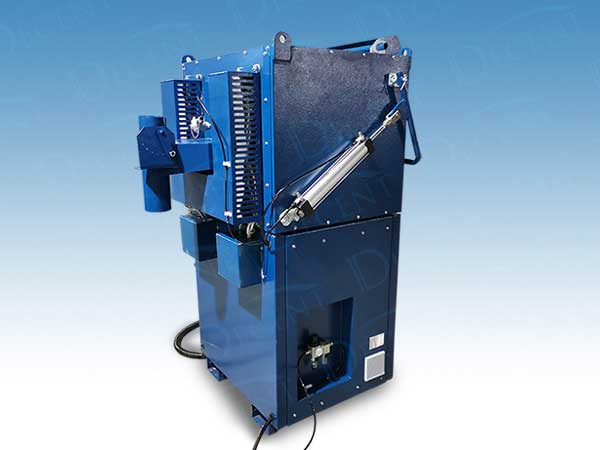

Door Operation

• Counter balanced rising.


Technical Parameters

Model No.

Muffle Size

Working Area

mm

Cupel Qty & Size

Heating Element

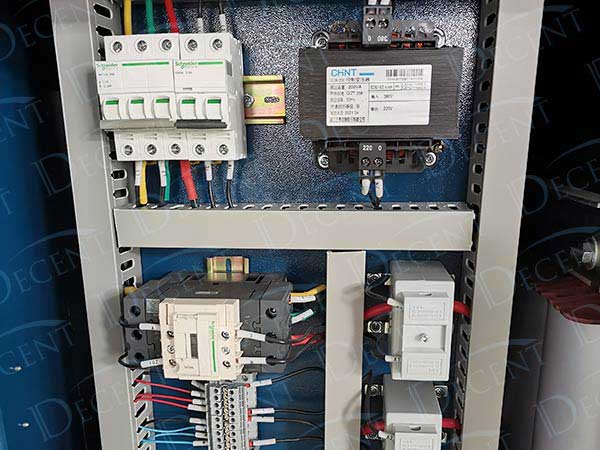

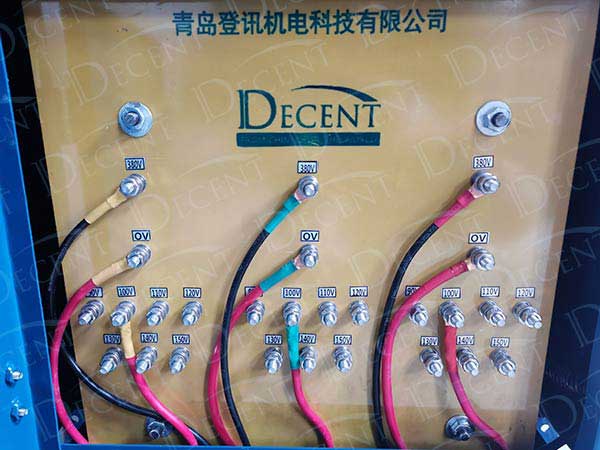

Transformer

Dimension

mm

DE50CF

No. 4

450x250x145

50x6A/7A/7AS

12pcs, Silicon Carbide

3ph, 10.5va Multi-tap

1100x1100x1700 w/ door closed

1100x1100x1717 w/ door open

1120x1120x1800 w/ packing

DE100CF

No. 5

560x480x190

100x6A/7A/7AS

12pcs, Silicon Carbide

3ph, 15va Multi-tap

1210x970x1760 w/ door closed

1210x1070x1960 w/ door open

1410x1490x2080w/ packing
