SAMPLING & SAMPLE PREPARATION

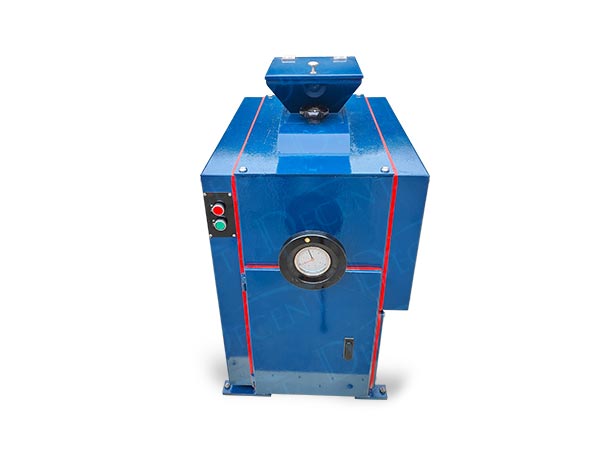

DOUBLE ROLLER CRUSHER

DOUBLE ROLLER CRUSHER

Product Details

[ STANDARD FEATURES ]

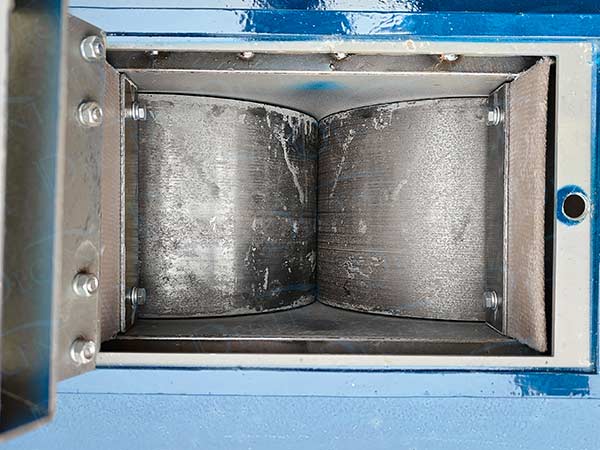

●   Rollers surfaces are with special treatment and do not stick to coal.

●   Adjusting wheel with scale provides accurate rollers gap adjustment.

●   Uniform output and high efficiency.

●   Fully sealed cabinet design offers safe and dust free operation.

●   Low noise and easy maintenance.

●   Optional alloy rollers (rollers with clad layer of tungsten carbide ) can crush high hardness alloy ores such asferromolybdenum,ferrovanadium etc.


[ TECHNICAL PARAMETERS ]

Model No.

DRC20075

DRC200125

DRC200150

DRC250150

Roller Size

Φ200x75mm

Φ200x125mm

Φ200x150mm

Φ250x150mm

Feed-in Size

≤13mm

≤13mm

≤13mm

≤20mm

Output Size

<3-0.5mm

<3-0.5mm

<3-0.5mm

<3-1mm

Productivity

300-200 kgs/h

350-250 kgs/h

400-300 kgs/h

450-300 kgs/h

Power

1.5 kw

3 kw

3 kw

3 kw

Voltage

3ph, 380v, 50hz

3ph, 380v, 50hz

3ph, 380v, 50hz

3ph, 380v, 50hz

Weight

220 kgs

240 kgs

260 kgs

280 kgs

Overall Dimension

820x490x960mm

820x540x960mm

840x550x960mm

840x560x960mm
