SAMPLING & SAMPLE PREPARATION

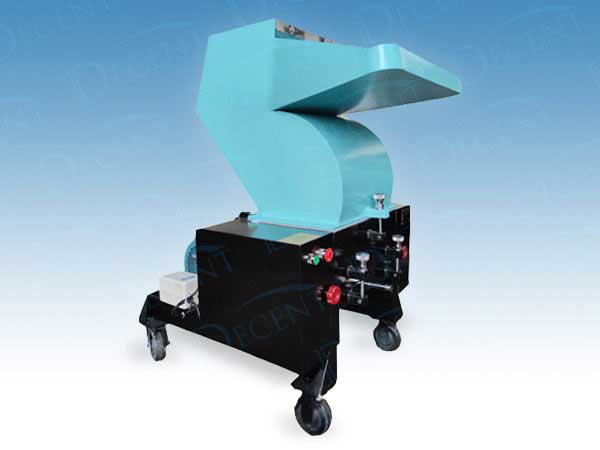

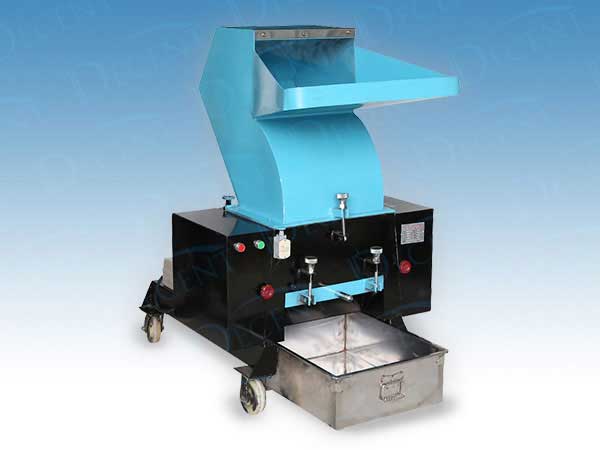

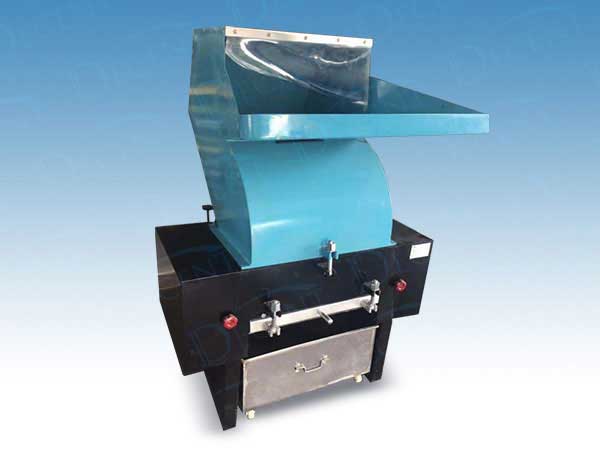

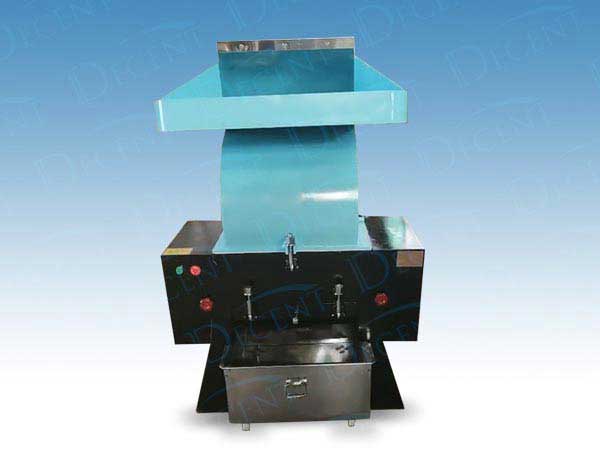

Angle Cutting Crusher

Angle Cutting Crusher crushes materials with assistance of screen to required uniform particles and less powder by the principle of cutting and squeezing. Compared with the traditional impact crusher, the angle cutting crusher can be used as a powerful tool for the pre-processing of crushing and meanwhile meet the requirements to uniformity of crushing particle size in the fields such as extraction pre-processing, production of herbal tea and so on. With selected cutters and corresponding supporting shaft, angle cutting crusher can be also used as an excellent plastic crusher for pre-treatment in the plastic manufacturing industry. So it plays an important role in the primary treatment of plastic waste and electronic scrap for environment protection

Product Details

[ BRIEF INTRODUCTION ]

Angle Cutting Crusher crushes materials with assistance of screen to required uniform particles and less powder by the principle of cutting and squeezing. Compared with the traditional impact crusher, the angle cutting crusher can be used as a powerful tool for the pre-processing of crushing and meanwhile meet the requirements to uniformity of crushing particle size in the fields such as extraction pre-processing, production of herbal tea and so on. With selected cutters and corresponding supporting shaft, angle cutting crusher can be also used as an excellent plastic crusher for pre-treatment in the plastic manufacturing industry. So it plays an important role in the primary treatment of plastic waste and electronic scrap for environment protection.

[ Application Fields ]

It is often used as a pre-processing equipment for crushing and extraction and in environment protection fields such as waste recycling, garbage disposal and so on.

[ Working Principle ]

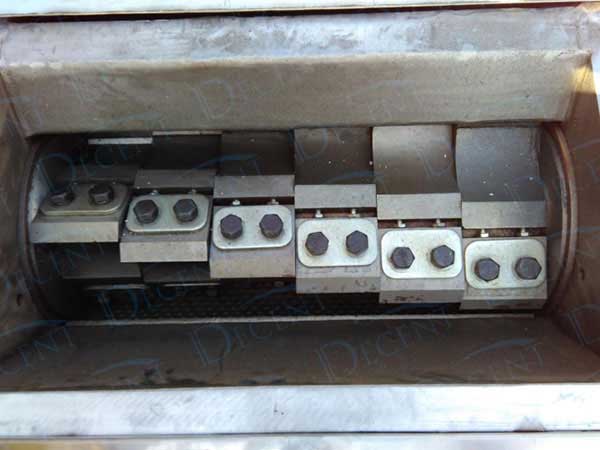

The angle cutting crusher is a device that uses the interaction between movable knives and fixed knives to break materials into granules by cutting, impacting, squeezing and other methods. It consists of feed inlet, crushing chamber, collector and so on. The materials enter crushing chamber from feeding port and then are crushed by the high-speed rotating moving knives and stationary fixed knives. After being sorted by the screen, final particles fall into the collector and the whole crushing process is done.

[ PRODUCT VIDEO ]


[ UNIQUE ADVANTAGES ]

Strong crushing ability offers excellent performance for wide application of materials.

Various screen sizes provide different final particle size of materials.

Full width manganese-chrome alloy hammer heads crush materials in full section and avoid problems of blocking working cavity and sample holdup.

Durability design provides long lifetime and low maintenance.

Low noise supplies friendly operation environment.

No vibration offers perfect operation and performance.

With casters for convenient use.

Optional dusting machine is available for better operational environment.

[ TECHNICAL PARAMETERS ]

Model No.

Inlet Size

Productivity

Power

Overall Size

Net Weight

DACC150

160x150mm

50-100kg

2.2kW

550x430x930mm

165kg

DACC250

250x200mm

100-200kg

4kW

830x560x1120mm

270kg

DACC300

300x250mm

150-300kg

5.5kW

830x560x1120mm

380kg

DACC380

380x250mm

200-400kg

7.5kW

810x960x1280mm

580kg

DACC500

500x290mm

350-600kg

11kW

1350x1000x1500mm

850kg

DACC600

600x350mm

800-1500kg

15kW

1450x1100x1600mm

950kg

DACC700

700x490mm

1000-2500kg

22kW

1800x1430x1750mm

1500kg
